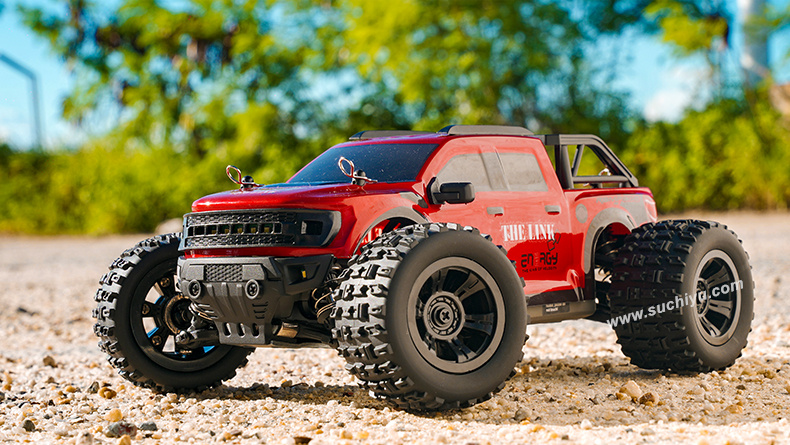

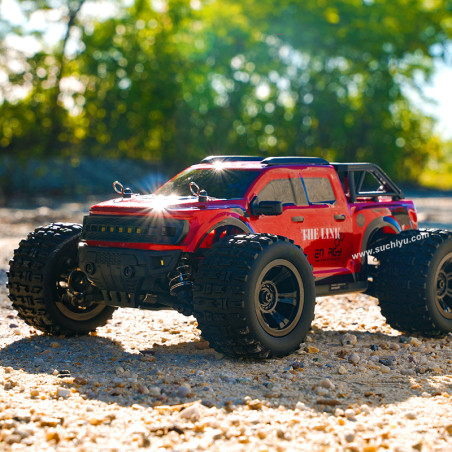

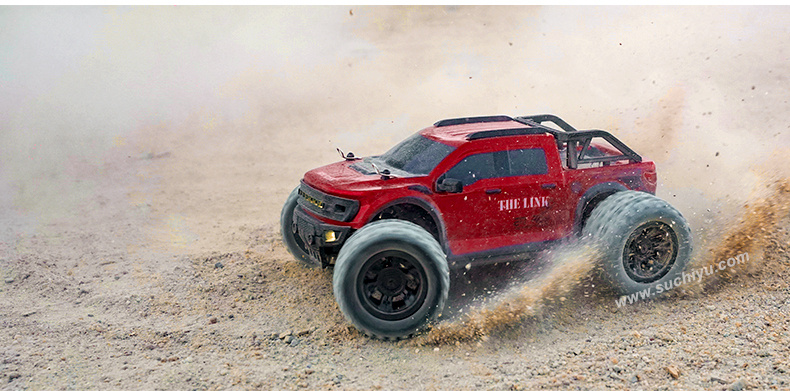

Suchiyu SCY 18102 1/18 2.4G 4WD High Speed RC Truck-Brushed Version

Product Details:

Brand: Suchiyu

Model: SCY-18102

Product frequency: 2.4GHz(support multi-vehicle competition)

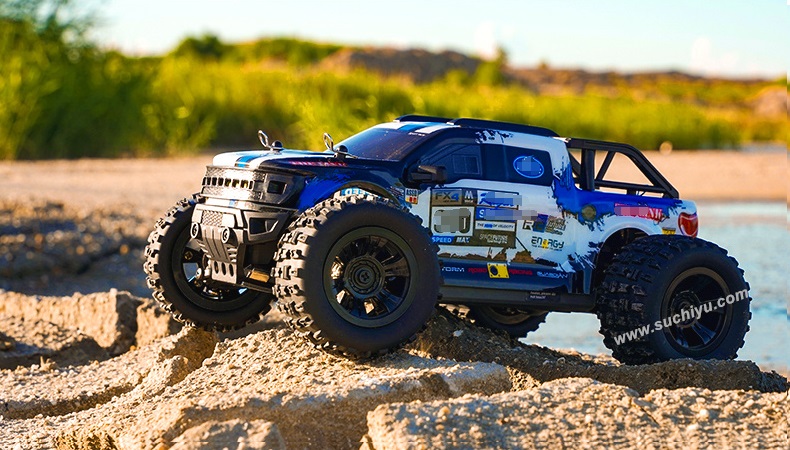

Product color: Floral blue/red

Product material: Hardware/electronic/plastic

Wheelbase: 165mm Wheelbase: 155mm Wheel diameter :67mm

Single weight (including battery) Kg: 0.75

Single package weight (including color box) Kg: 1.5

7.4V 1500mAH Weight g: 91.7

Gross/net weight (kg): 13.5/12

Remote control specifications (cm): 12.6*8.2*18.5

Product specifications (cm): 25*19*11

Color box size (cm): 26.3*16.5*22

Product speed (km/h): 28

Product Battery: 7.4V 1500mAH lithium-ion battery (T plug)

Remote control battery: 3* "AA" (to be purchased separately)

Charging: USB cable charger

Remote control time (minutes): 35-40 minutes (continuous running at full speed)

Charging time (min): 180-210 (USB balance charge)

Remote control distance (m): ≥80

Servo line 5,17g

Headlight configuration: LED front light white light, central white light

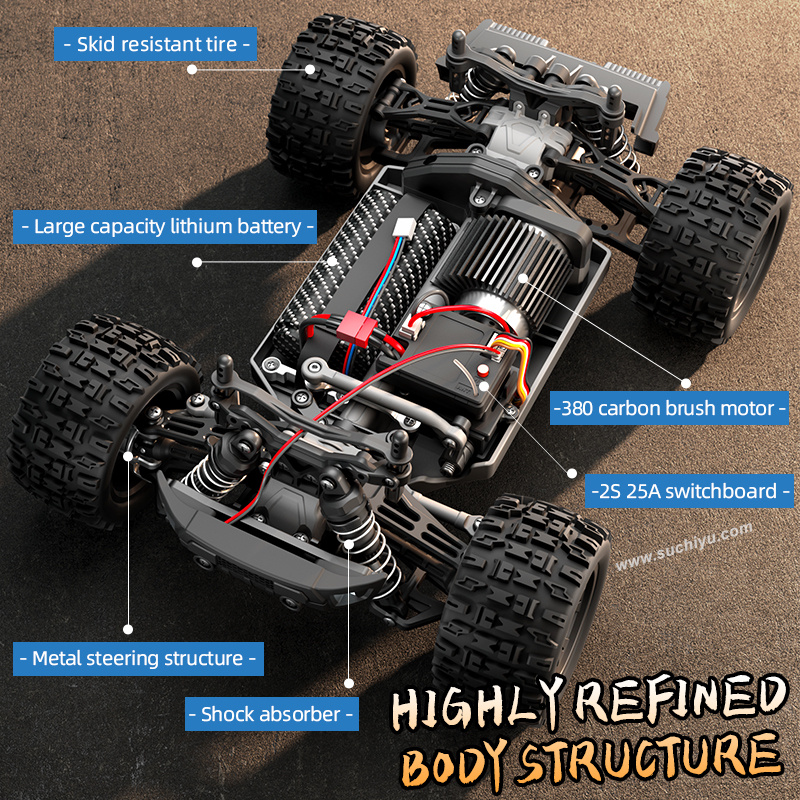

Differential structure: Metal differential (planetary gear)

Motor: RC380 high speed carbon brush strong magnetic (magnetic protection + heat sink)

Electric modulation/reception: 25A 2S integrated control (anti-splash)

Remote control category: Full proportional synchronous control system (gun control)

Product configuration:

1) Complete vehicle; 2) Remote control; 3) Instructions in Chinese and English; 4) Lithium battery; 5) USB charger; 6) Shock absorbing adjustment buckle; 7) Metal latch; 8) Phillips screwdriver;

Protection function 1. Charging; 2. Stuck; 3. High temperature; 4. Low Pressure

1: Charging protection: constant current and constant voltage balanced charging, the protection function of the battery overcharge and overcurrent.

2: motor anti-jamming protection: overload work, the motor stops working.

3: high temperature protection: When the operating temperature is higher than the set condition, the drive control circuit stops working, and the temperature drops to a safe value after the resumption of work.

4: The power down voltage power off function, the battery is lower than 6.3-6.4V, automatic power off, to prevent the battery overdischarge and damage.

Product parameters:

1, the use of simulation structure design, with real car control feeling, to achieve full scale stepless transmission, high-speed driving, rapid acceleration, deceleration, braking, reversing, left, right turn;

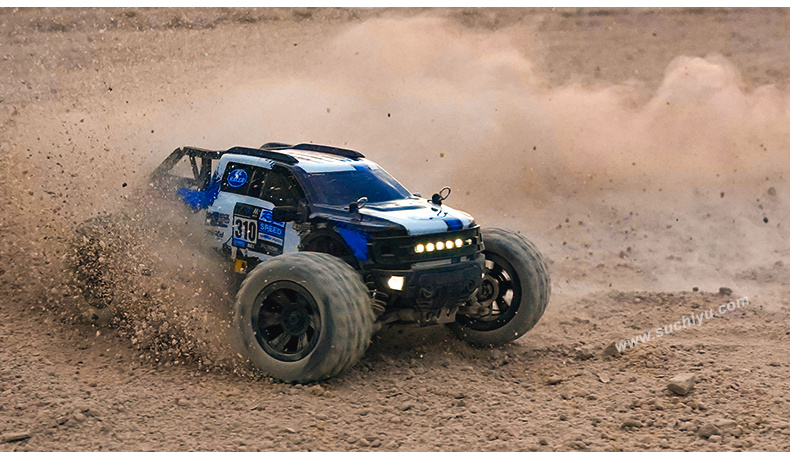

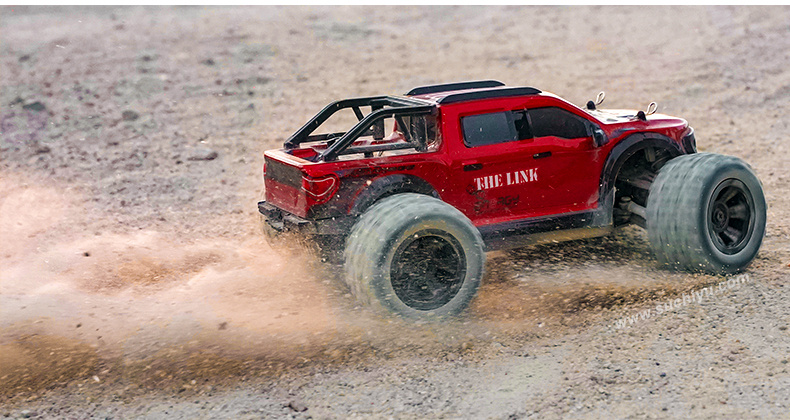

2, applicable site: flat land, sand, mud, grass.

3, four-wheel drive: front and rear vertical spring shock absorption, double fork arm independent suspension system;

4, remote control system: 2.4G full proportion synchronous remote control system. Full throttle/steering;

5, electrical regulation: 2.4G anti-splash four-way 30A integrated electrical regulation/reception;

6, drive shaft structure: front wheel cross ball head universal joint drive shaft, rear wheel split dog bone drive shaft;

7, steering gear parameters: five-line 17G steering gear;

8, battery parameters: 7.4V, 18650-1500mAh Li-ion battery (T plug);

9, ball bearings: the whole car uses 15 ball bearings;

10, metal parts: metal bottom reinforcement plate, metal differential, metal gear, metal steering knuckle, metal front and rear arm code, metal drive shaft;

11, car shell: car shell with high toughness explosion-proof PVC car shell; The shell is equipped with anti-loss silicone clasp;

12, lighting: equipped with LED headlights; (Three gear mode: steady on, slow blinking, fast blinking);

13, other equipment: equipped with head-up wheel;

14, other equipment: simulation big foot tire, strong grip;

How about SCY 18102?

What are its advantages?

1. The car is small and easy to carry, whether you are outdoor picnic/travel, you can take it with you.

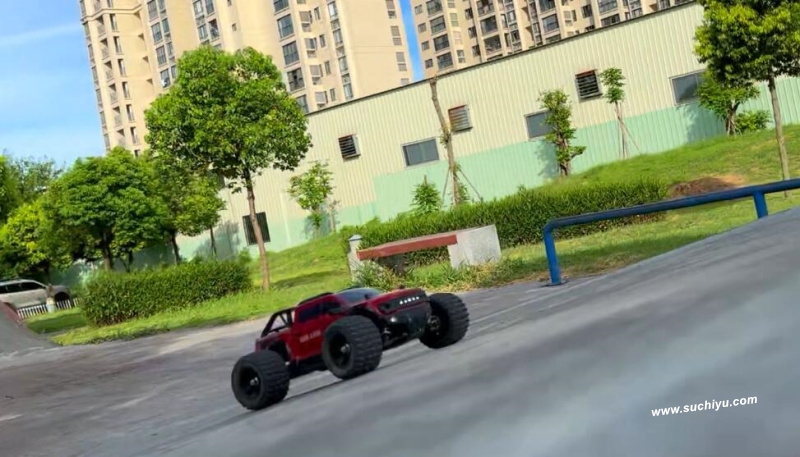

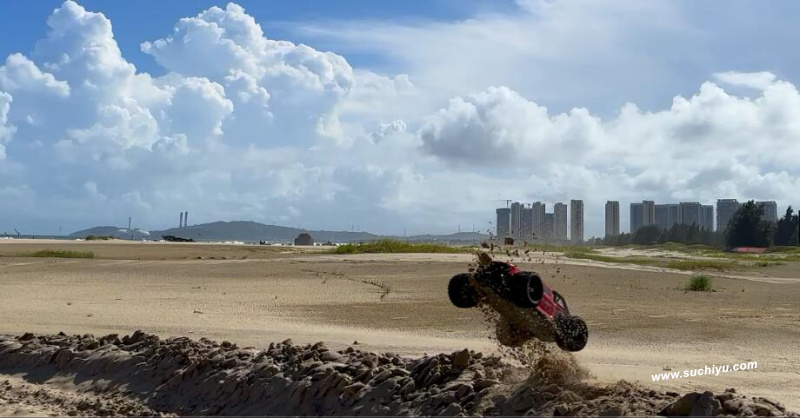

2. Its performance can almost reach the various experiences of RC enthusiasts on remote control cars, and it can achieve high-speed driving, high-altitude landing, and flying.

At the same time, it can easily drive on snow, desert, beach, and grass to complete various difficult actions, allowing you to experience various exciting gameplay.

Maintenance guide：

1. lf it is not used for a long time, please take out the battery in the model car and remote control.2.Make sure the battery is fully charged before each use.

3.Before or after each use, carefully check whether the circuit wiring of the model car is fastened and there isno dropped connector.Carefully check whether the wheels are fastened.Loose wheels will cause excessivewear of transmission shaft, wheel cup or wheel seat.

4.Check whether the transmission gear needs to be lubricated.

5.The idle battery needs to be stored in a dry and cool place after charging (up to 50-60% of the power) toavoid children's touch.

6.After each use, please carefully check whether all parts of the model car are complete and repair or replacethem in time.Use a fine brush to clean the sand, dirt and other dirt in the model car, and then use a softcloth to wipe it clean.

Common questions and solutions for model cars:

Why can't the remote control car move?

1. The model is of low battery.

2. The engine or the motoris damaged.

3. The electronic speed regulator is damaged.

4. The wire is damaged.

Processing Method: Please reconnect the damaged part and insulate it.

5. The connector is isdamaged.

Processing Method: Please check whether the power cord of the motor isdisconnected.  lf yes,re-weld it.

6. The power connector is isloose.

Processing Method: Please check whether the contact between connectors ofeach part is loose. lf yes, please re-plug and fix them.

Why did the car lose control?

1. Whether the model or theengine is of low battery.

Processing Method: Please charge the model batteries, or put in fully-chargedbatteries, or replace them with new engine batteries.

2. The receiver isdamaged.

3. There lacks torsion.

Processing Method: Please apply lubricant to the moving members.

4. The rotating member isnot lubricated properly.

Processing Method: Please check whether the steering gear is out of order, andreplace it with a new one when necessary.

5. The steering part is isdamaged.

Processing Method: The swing arm on the steering gear is damaged.  Pleaseconfirm whether to replace it with a new one.

6. The rotating member isnot assembled properlyor is worn.

Processing Method: Please troubleshoot carefully the part that fails,  and checkand re-assemble it.    lIf the gear or any other accessory is badlyworn,please replace it with a new one.  Disassembly andassembly ma

What should I do if the car breaks down? How to repair it?

Where to buy the spare parts For the SCY 18101 rc car?

Our store sells all the accessories related to it, including original accessories, upgraded accessories, upgraded and modified accessories, etc.

We will constantly replace the latest products.
