Suchiyu SCY 16301 1:16 Electric Four-Wheel Drive Drift Car

Product Details:

Item number SCY-16301

Product Name 1:16 Electric four-wheel drive drift car (racing)

Product color Metallic Blue/Metallic red

Product material Hardware/Electronics/Plastic

Product speed (km/h) 35

Product Battery (mah) 7.4V 1300mah lithium-ion battery (T plug)

Remote control battery 3* "AA" (to be purchased separately)

Charging USB charging cable

Remote control time (min) 15-18 (continuous full speed running)

Charging time (min) 180-210 (USB balance charge)

Remote control distance (m) ≥80

Frequency 2.4GHz(support multi-vehicle competition)

Remote control Category Full proportional synchronous control system (Gun control)

Motor RC390 high speed bearing carbon brush strong magnetic (magnetic protection + heat sink) blackened

Electric/receive Electric/receive integrated control (anti-splash)

Steering gear Five-wire steering gear/Weight: 17g

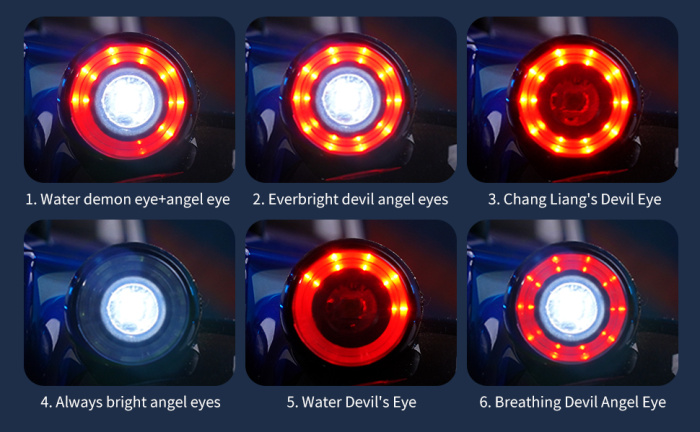

Headlights are equipped with demon angel eyes headlights (seven modes) and taillights

Wheelbase parameter "Wheelbase: 180mm Wheelbase: 127mm

Wheel diameter :50mm"

Single weight (including battery) : 0.8Kg

Single package weight (including color box) : 1.45Kg

Product specification (cm): 33*15*9

Color box size (cm): 34.5*15*25

Protection function:

1: Charging protection: constant current and constant voltage balanced charging, the protection function of the battery overcharge and overcurrent.

2: motor anti-jamming protection: overload work, the motor stops working.

3: high temperature protection: When the operating temperature is higher than the set condition, the drive control circuit stops working, and the temperature drops to a safe value after the resumption of work.

4: The power down voltage power off function, the battery is lower than 6.3-6.4V, automatic power off, to prevent the battery overdischarge and damage.

Common questions about model cars:

1. After the power is turned on, the indicator is off

Fault analysis: The battery is out of power, the battery is incorrectly installed, or the battery cable is damaged

Troubleshooting: Replace the battery with a charged one and check whether the battery and cable are damaged

2. Abnormal or faulty steering

Fault analysis: Check whether there is debris blocking the steering structure, or steering components or steering gear has been damaged.

Troubleshooting: Check all components and replace any damaged and worn parts

3. You can turn, but you can't move forward or backward

1) Battery power is insufficient, replace with a charged battery

2) The transmission parts are damaged or blocked or loosened by debris, clean or replace the parts

3) If the power adjustment function is abnormal, replace the power adjustment

4. The model car makes a lot of noise

Fault analysis: Check whether there is debris blocking the transmission parts, or the transmission parts are damaged or falling off, check the meshing degree of the motor gear and the big gear, check and analyze whether the differential and the big gear have been swept, broken teeth and other phenomena.

If this happens, if the fault is not eliminated in time, timely treatment, continued use will lead to motor damage.

Maintenance of model cars:

1. If it will not be used for a long time, please remove the batteries from the model car and remote controller.

2. Before each use, make sure the battery is fully charged.

3. Before or after each use, carefully check whether the circuit wiring of the model car is tight and there are no loose connectors. Carefully check whether the wheels are tight. Loose wheels will cause excessive wear on components such as the drive shaft, wheel cups or wheel seats. .

4. Check whether the transmission shaft gear needs lubricating oil.

5. Idle batteries need to be charged (charged to 50-60% capacity) and stored in a dry, cool place out of reach of children.
