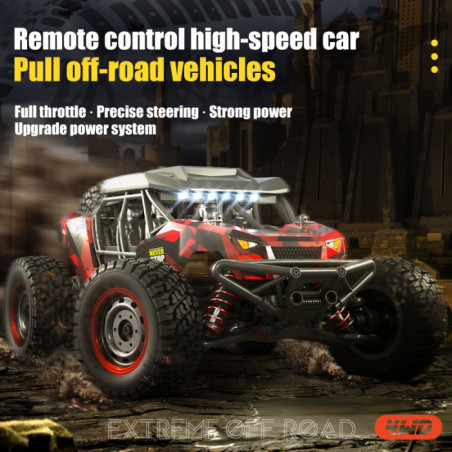

Suchiyu SCY 16106 1/16 Remote Control High-Speed Car Pull Off-Road Vehicles

Product Details:

Item number: SCY-16106

Product Name: 1/16 electric four-wheel drive off-road vehicle (Desert card)

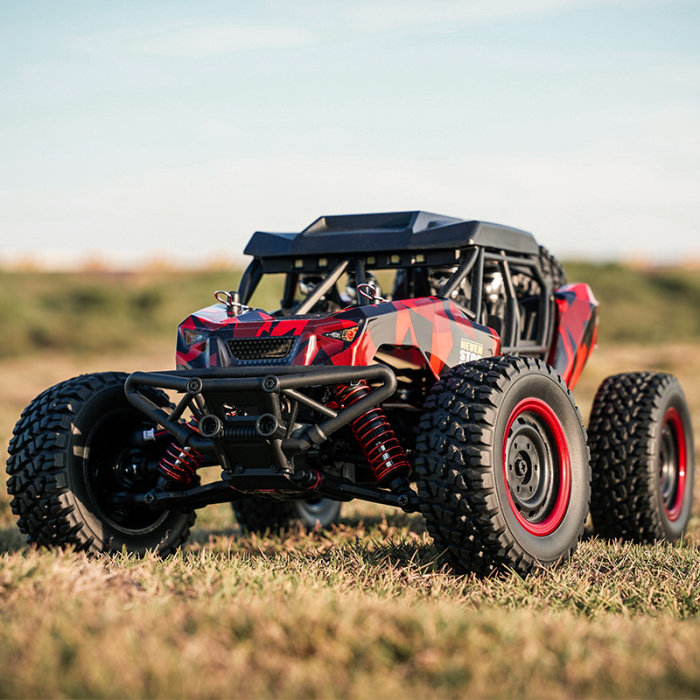

Product color: Red/dark gray

Product Battery 7.4V 1300mAH 10C lithium-ion battery (T plug)

Single weight (including battery): 1.1Kg

Single package weight (including color box): 1.8Kg

Gross/net weight: 11.8/10.8kg

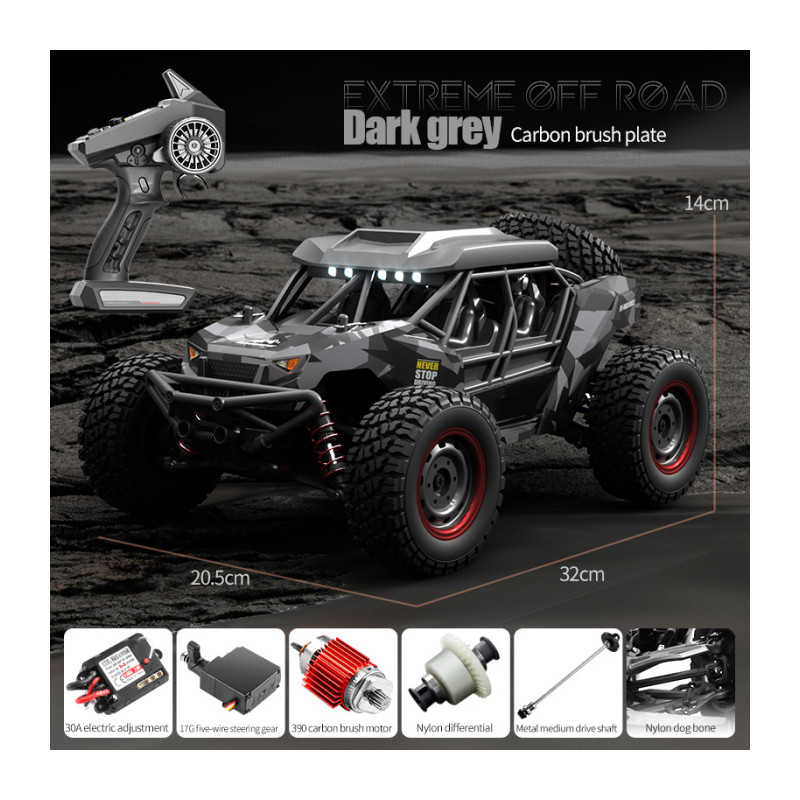

Product specification: 32*20.5*14 cm

Color box size: 33.5*19.4* 23.7cm

Product material: Hardware/electronic/plastic

Remote control battery: 3* "AA" (to be purchased separately)

Charging: USB cable

Headlight configuration: LED headlight, LED roof headlight, LED roof rear light

Differential structure: front and rear nylon gear planetary differential

Motor: RC390 high speed carbon brush strong magnetic (magnetic protection + heat sink)

Electric control: 30A 2S integrated control (anti-splash)

Product speed: 38 (km/h)

Remote control time: 15-18 minutes

Charging time: 180-210(min)

Remote control distance: ≥80 meters

Product configuration:

1, the whole vehicle 2, remote control 3, English manual 4, lithium battery 5, USB charger 6, DIY self-adhesive 7, shock adjustment buckle 8, metal latch 9, small Phillips screwdriver

Protection function:

1: Charging protection: constant current and constant voltage balanced charging, the protection function of the battery overcharge and overcurrent.

2: motor anti-jamming protection: overload work, the motor stops working.

3: high temperature protection: When the operating temperature is higher than the set condition, the drive control circuit stops working, and the temperature drops to a safe value after the resumption of work.

4: The power down voltage power off function, the battery is lower than 6.3-6.4V, automatic power off, to prevent the battery overdischarge and damage.

Product features:

1, the use of simulation structure design, with real car control feeling, to achieve full scale stepless transmission, high-speed driving, rapid acceleration, deceleration, braking, reversing, left, right turn;

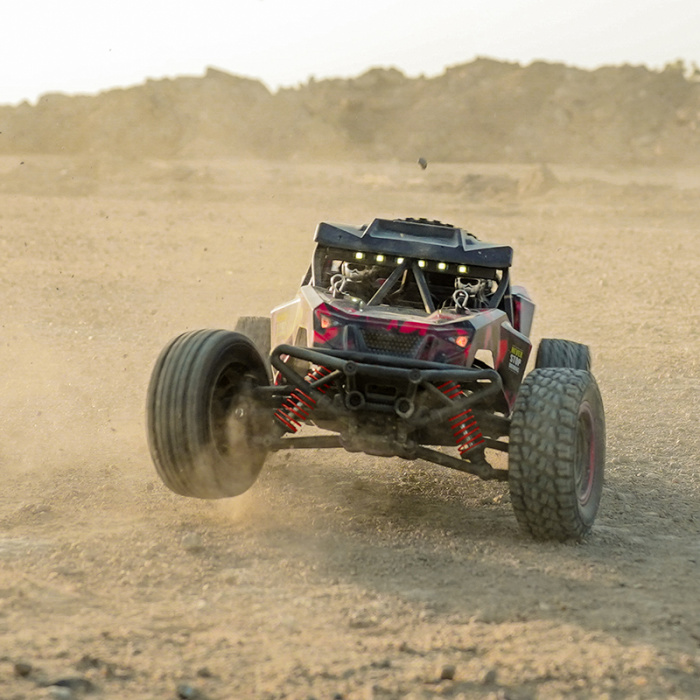

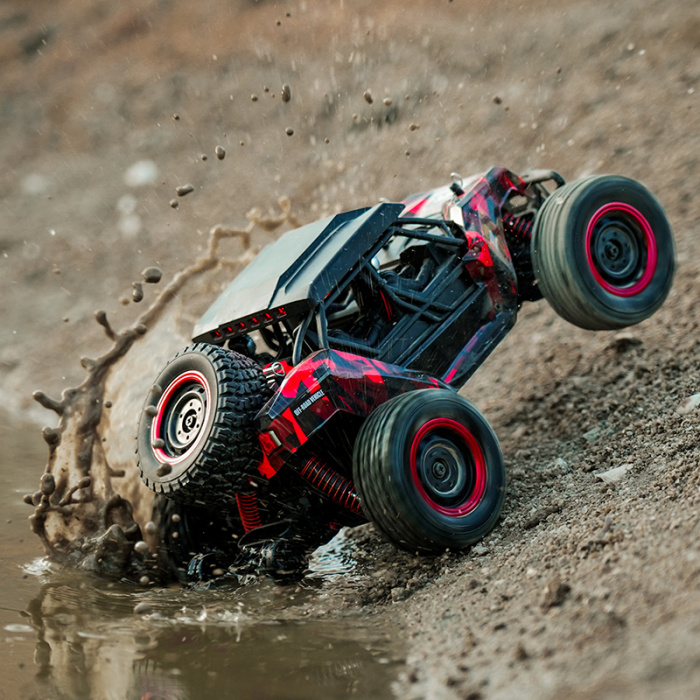

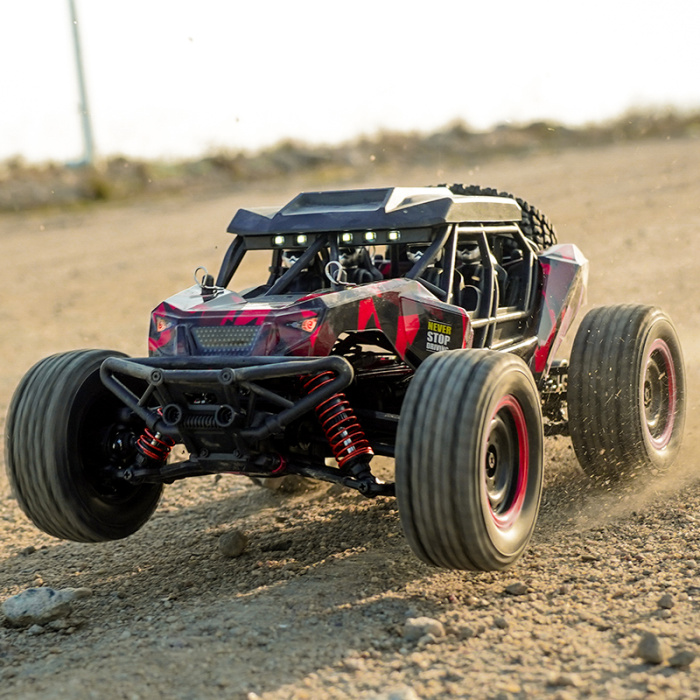

2, applicable site: flat land, sand, mud, grass.

3, four-wheel drive: front and rear vertical spring shock absorption, double fork arm independent suspension system;

4, 2.4G full proportion synchronous remote control system. Full throttle/steering;

5, 2.4G anti-splash four-way 30A integrated electric modulation/reception;

6, front wheel cross ball head universal joint drive shaft, rear wheel split dog bone drive shaft;

7. Five-line 17G steering gear;

8, super battery power: 7.4V, 18650-1300mAh Li-ion battery (T plug), discharge rate 10C;

9, the whole car adopts 16 ball bearings;

10, metal second floor, metal front and rear arm code, metal drive shaft;

11. The shell adopts high toughness explosion-proof PVC shell + high strength anti-roll skeleton;

12, the car shell is equipped with LED headlights, LED roof headlights, LED roof rear lights; (Three gear mode: steady on, slow blinking, fast blinking);

13, simulation off-road tires, strong grip;

Frequently asked questions about cars:

1. The indicator light does not light up after the power is turned on.

Failure analysis: The battery is dead or the battery is installed incorrectly or the battery wiring is damaged.

Troubleshooting: Replace with a charged battery and check if the battery and wiring are damaged

2. Abnormal steering or failure

Failure analysis: Check whether there are any debris blocking the steering structure, or the steering components or steering gear are damaged.

Troubleshooting: Check all parts and replace any damaged or worn parts

3. Can turn, but cannot move forward or backward

1) The battery is low, replace it with a charged battery

2) The transmission parts are damaged or blocked or loosened by debris. Clean or replace the parts.

3) The ESC function is abnormal. Replace the ESC.

4. The model car makes a lot of noise when driving

Failure analysis: Check whether there are debris blocking the transmission parts, or the transmission parts are damaged or falling off, check the meshing degree of the motor gear and the large gear, check and analyze whether the differential and the large gear have teeth sweeping, chipping, etc.

If this happens, if the fault is not eliminated and dealt with in time, continued use will cause damage to the motor.

Notice:

1. The packaging color box is subject to the actual item received, because sometimes the factory will replace the packaging box with different ones.

2. Because the freight for overseas parcels is calculated based on volume, we will pack it according to the actual situation.

Sometimes we will not ship the goods in the original packaging box. We will re-modify the packaging box to reduce the size and prevent pressure.

If you mind, please don't buy.
