Suchiyu SCY 16106 PRO Brushless 1/16 4WD Desert Car

Product Details:

Item No. : SCY-16106PRO

Product Name: 1/16 electric four-wheel drive off-road vehicle (Desert card)

Product ratio: 1:16

Product color: Purple/blue

Single weight (including battery) : 1.25Kg

Single package weight (including color box) : 1.95Kg

Product specifications (cm): 32*20.5*14

Remote control specifications (cm): 13*7.5*21

Color box size (cm): 33.5*19.4*23.7

Frequency: 2.4GHz(support multi-vehicle competition)

Remote control battery: 3* "AA" (to be purchased separately)

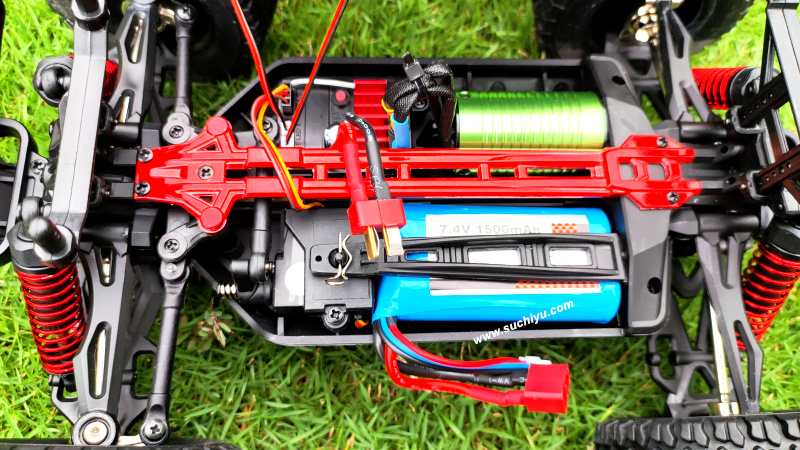

Product Battery: 7.4V 1500mAH 15C lithium-ion battery (T plug)

Headlight configuration: LED headlight, LED roof headlight, LED roof rear light

Differential structure: planetary gear differential (metal)

Motor: 2847 brushless motor (4000 KV value)

Electric control: 35A 2S integrated control (anti-splash)

Product speed (km/h): 70

Remote control time (minutes): 15-18

Charge time (min): 180-210

Remote control distance (m): ≥120

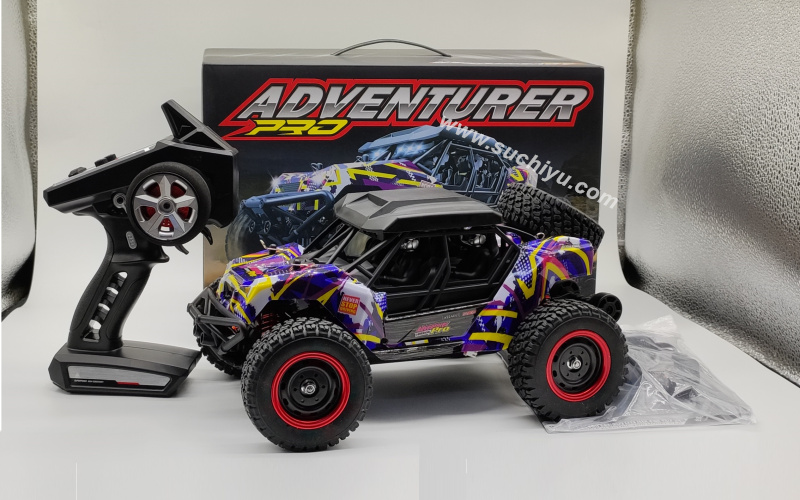

Product configuration:

1, the whole vehicle 2, remote control 3, Chinese and English instructions 4, lithium battery 5, USB charger 6, tail 7, head-up wheel 8, shock adjustment buckle

9, metal bolt 10, Phillips screwdriver 11, hexagonal sleeve 12, brushless edition guide inserts

Protection function:

1: Charging protection: constant current and constant voltage balanced charging, the protection function of the battery overcharge and overcurrent.

2: motor anti-jamming protection: overload work, the motor stops working.

3: high temperature protection: When the operating temperature is higher than the set condition, the drive control circuit stops working, and the temperature drops to a safe value after the resumption of work.

4: The power down voltage power off function, the battery is lower than 6.3-6.4V, automatic power off, to prevent the battery overdischarge and damage.

Product function：

1, the use of simulation structure design, with real car control feeling, to achieve full scale stepless transmission, high-speed driving, rapid acceleration, deceleration, braking, reversing, left, right turn;

2, applicable site: flat land, sand, mud, grass.

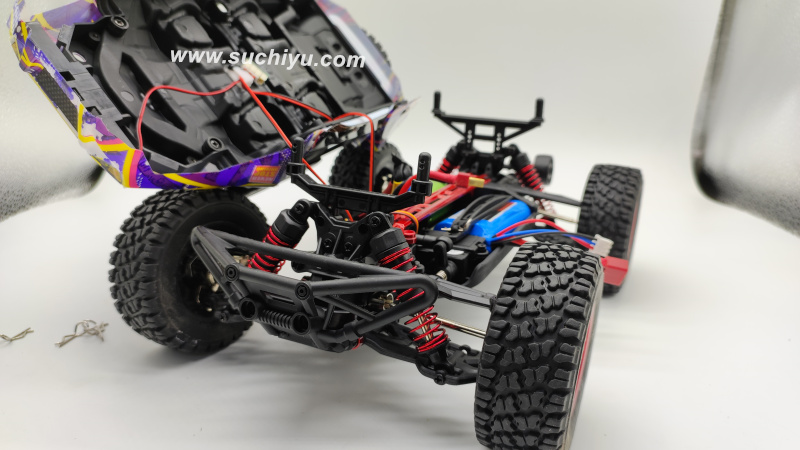

3, four-wheel drive: front and rear vertical spring shock absorption, double fork arm independent suspension system;

4, 2.4G full proportion synchronous remote control system. Full throttle/steering;

5, metal differential, metal differential cup, powder planet gear, powder drive gear, powder main gear, metal front steering knuckle + metal rear axle seat;

6, metal CVD front drive shaft, metal rear dog bone, metal wheel cup;

7, three wire 17G digital steering gear;

8, 7.4V, 18650-1500mAh Li-ion battery (T plug), discharge rate 15C;

9, new remote control panel function: rudder size adjustment;

10, the whole car adopts 16 ball bearings;

11, metal second floor, metal front and rear arm code, metal drive shaft;

12. The shell adopts high toughness explosion-proof PVC shell + high strength anti-roll skeleton;

13, the car shell is equipped with LED headlights, LED roof headlights, LED roof rear lights; (Three gear mode: steady on, slow blinking, fast blinking);

14, equipped with head-up wheel;

15, simulation big foot tire, strong grip;

Frequently asked questions about cars:

1. The indicator light does not light up after the power is turned on.

Failure analysis: The battery is dead or the battery is installed incorrectly or the battery wiring is damaged.

Troubleshooting: Replace with a charged battery and check if the battery and wiring are damaged

2. Abnormal steering or failure

Failure analysis: Check whether there are any debris blocking the steering structure, or the steering components or steering gear are damaged.

Troubleshooting: Check all parts and replace any damaged or worn parts

3. Can turn, but cannot move forward or backward

1) The battery is low, replace it with a charged battery

2) The transmission parts are damaged or blocked or loosened by debris. Clean or replace the parts.

3) The ESC function is abnormal. Replace the ESC.

4. The model car makes a lot of noise when driving

Failure analysis: Check whether there are debris blocking the transmission parts, or the transmission parts are damaged or falling off, check the meshing degree of the motor gear and the large gear, check and analyze whether the differential and the large gear have teeth sweeping, chipping, etc.

If this happens, if the fault is not eliminated and dealt with in time, continued use will cause damage to the motor.

Notice:

1. The packaging color box is subject to the actual item received, because sometimes the factory will replace the packaging box with different ones.

2. Because the freight for overseas parcels is calculated based on volume, we will pack it according to the actual situation.

Sometimes we will not ship the goods in the original packaging box. We will re-modify the packaging box to reduce the size and prevent pressure.

If you mind, please don't buy.
