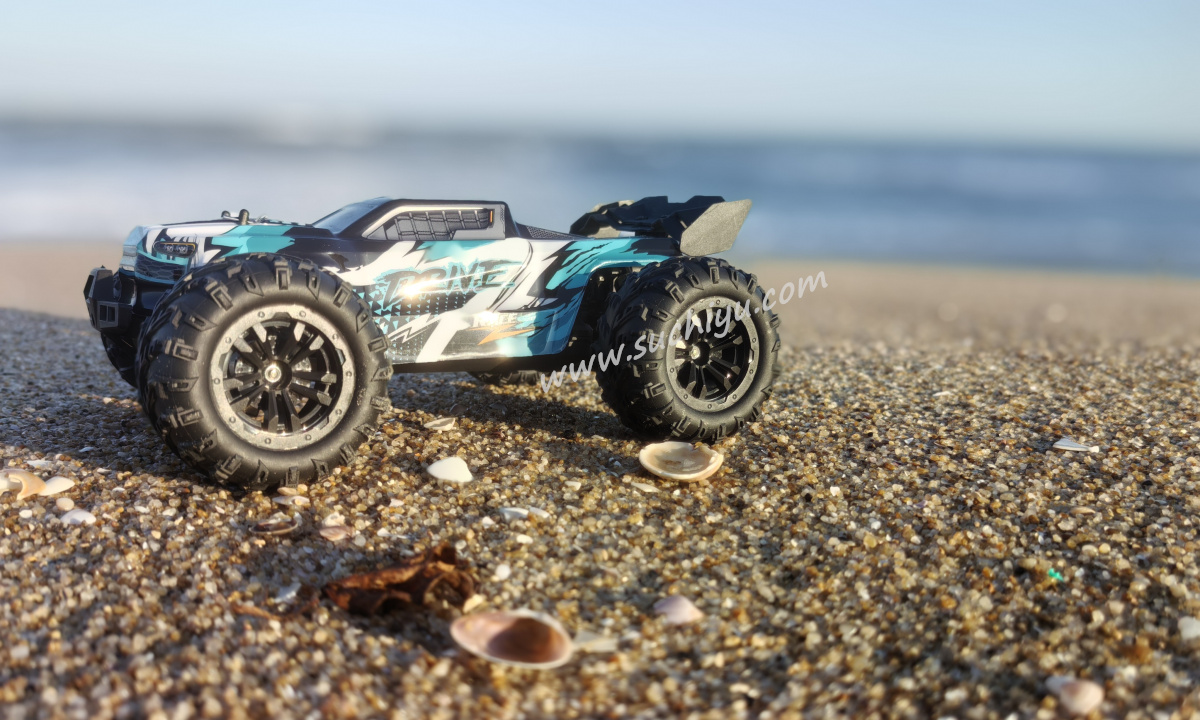

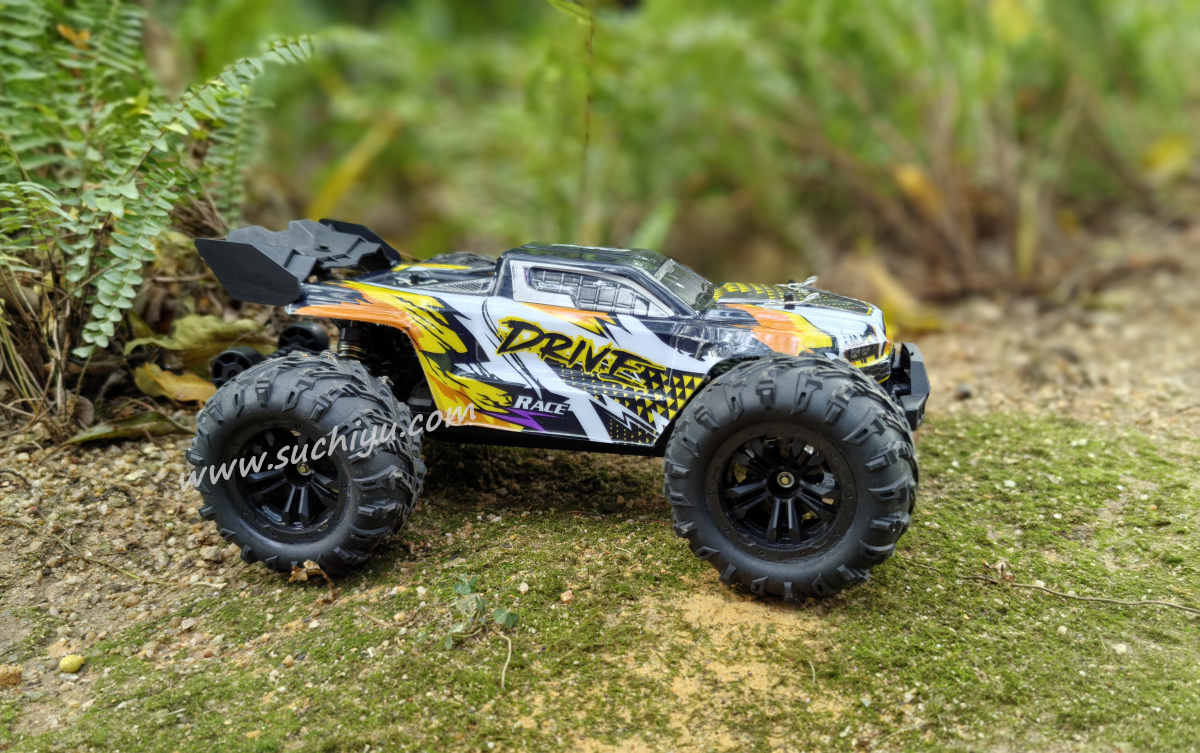

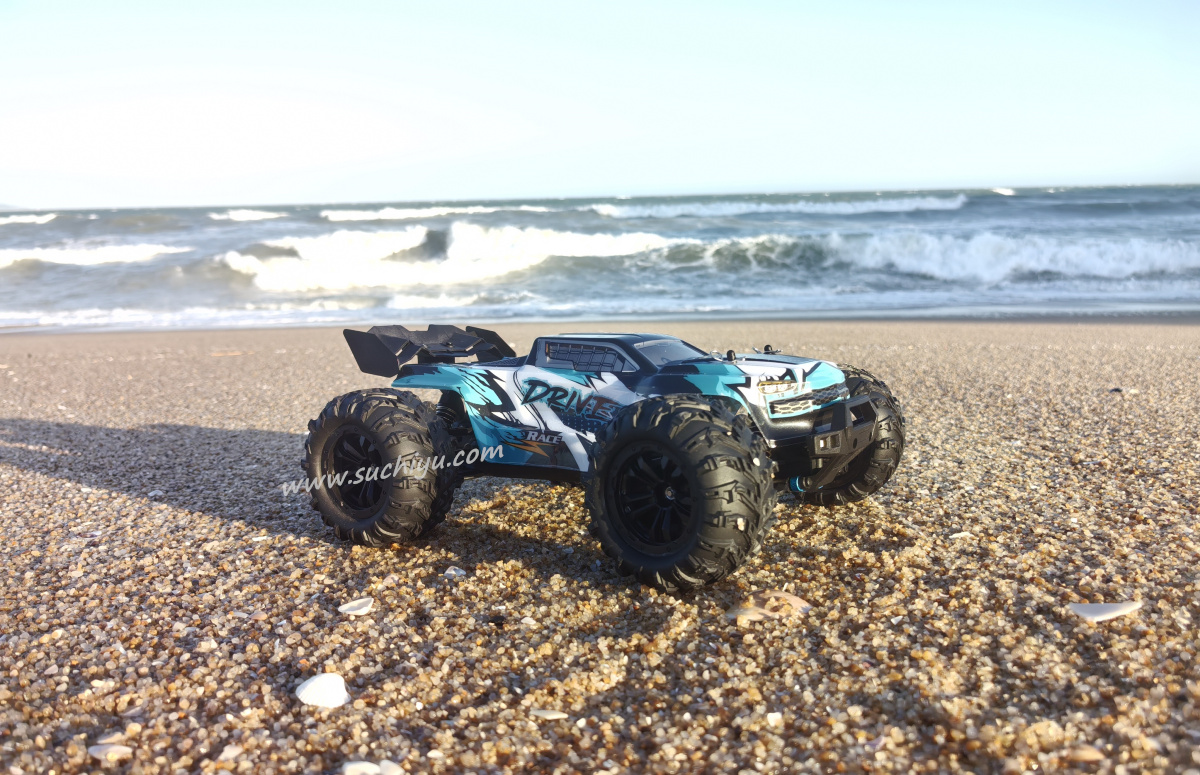

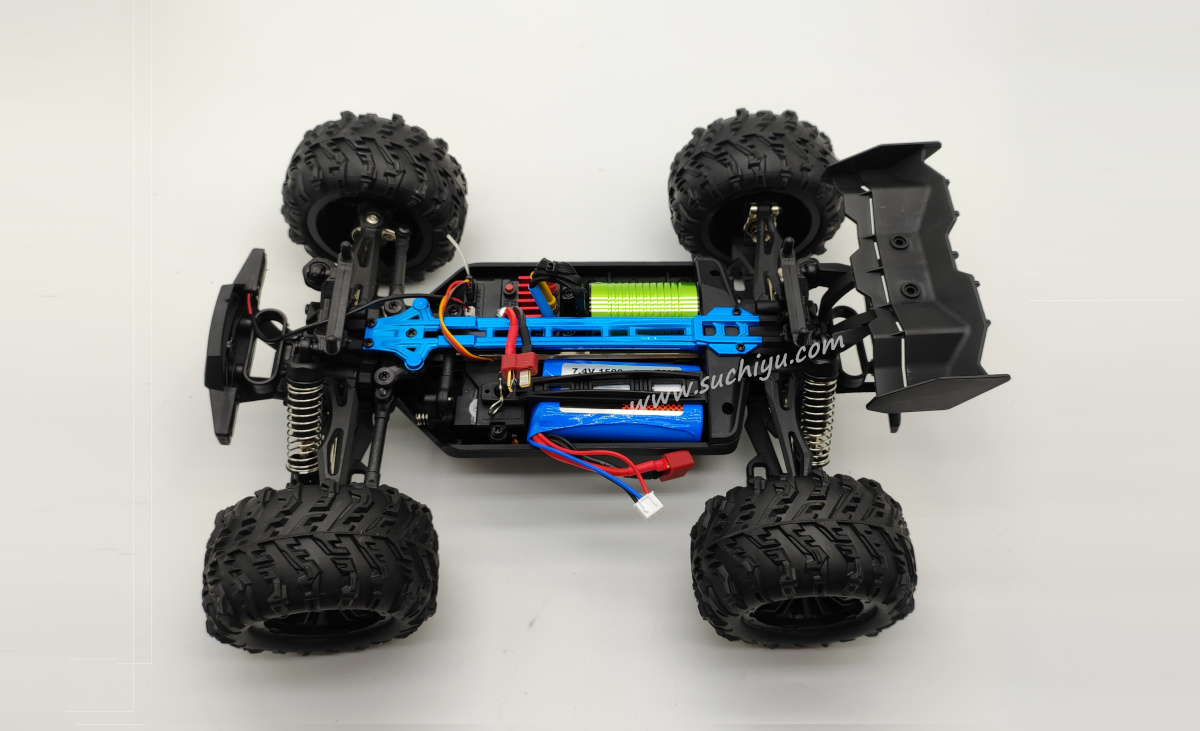

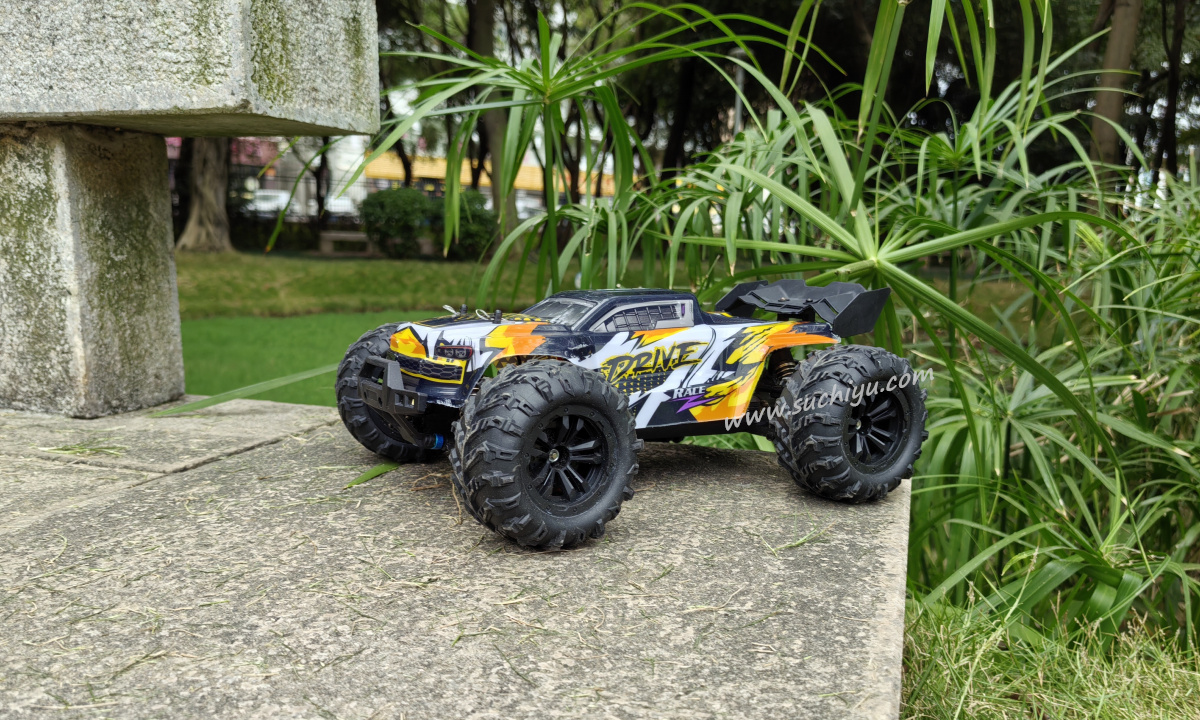

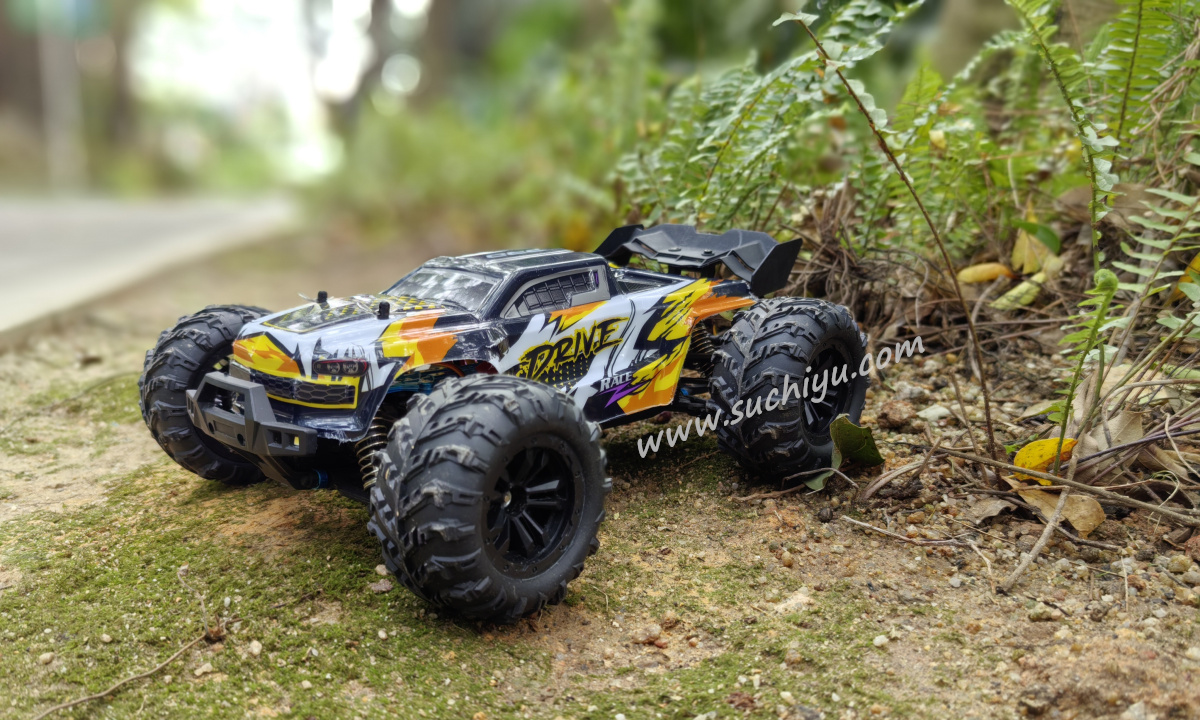

Suchiyu SCY 16102 PRO 1/16 2.4G 4WD RC Car-Brushless Version

Product description:

Frequency: 2.4GHz (supports multiple cars competing in the same field)

Product Color: Red/Green

Product speed (KM/h): 70 (maximum speed)

Product battery: 7.4V 1500mah 15C lithium-ion battery (T plug)

Remote control time (minutes): 15-18 (continuous running at full speed)

Charging time (minutes): 180-210

Remote control distance (meters): ≥120

Motor: 2840 brushless motor (4000 KV value)

ESC/receiver: 35A ESC/receiver integrated control (splash-proof)

Servo: Three-wire 17G digital servo

Differential structure: planetary gear differential

Remote control batteries: 3 "AA" (need to be purchased separately)

Charging: USB balanced charging

Single weight (including battery) Kg: 1.05

7.4V 1500mah Weight (g): 91.7

Single package weight (including color box) Kg: 1.65

Product specification (cm): 30*23*11.5

Color box specification (cm): 30.6*14.8*24.1

Product configuration:

1.  Complete vehicle 2.  Remote control 3.  Chinese and English manual 4.  Lithium battery 5.  USB balance charger 6.  Tail spoiler 7.  Head wheel 8.  Shock absorbing adjustment buckle 9.  Metal pin 10.  Hexagon socket 11.  Brushless version Instruction booklet

Features:

1.  Adopting a simulation structure design, it has the control feeling of a real car, realizing full-scale stepless transmission, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turn, right turn;

2.  Applicable venues: flat ground, sandy ground, mud ground, grassland.

3.  Four-wheel drive: front and rear upright spring shock absorbers, double wishbone independent suspension system;

4.  2.4G full-proportional synchronous remote control system.  Full-proportional throttle/steering;

5.  Metal differential, metal differential cup, powder gear;

6.  Metal CVD front drive shaft, metal rear dog bone, metal wheel cup;

7.  Three-line 17G digital steering gear;

8.  7.4V, 18650-1500mAh Li-ion battery (T plug), discharge rate 15C;

9.  Metal second floor plate, metal front and rear arm codes, metal middle drive shaft;

10.  The car shell adopts high toughness and explosion-proof PVC car shell;

11.  Equipped with LED headlights;  (three modes: constant light, slow flash, fast flash);

12.  Equipped with lifting wheels;

How does the remote control match the model car?

•  First turn on the remote controller power switch, the remote controller indicator flashes, indicating that the model car is searching for the code, and then long press the model car power switch for 2-3 seconds, at this time the remote controller indicator turns on, indicating that the code is successful.
• In order to make the remote control and receiver good frequency, the receiver must be turned on within 20 seconds of turning on the remote control in the model. If the remote control indicator blinks red quickly, the connection fails. If you miss it, just turn off remote control and restart it again.
• If the remote controller and receiver fail to bind, please close the remote control system first, then close the receiver, and then restart to resume normal operation.
• Always turn on remote controller first and turn off remote controller last.

Frequently asked questions about cars:

1. The indicator light does not light up after the power is turned on.

Failure analysis: The battery is dead or the battery is installed incorrectly or the battery wiring is damaged.

Troubleshooting: Replace with a charged battery and check if the battery and wiring are damaged

2. Abnormal steering or failure

Failure analysis: Check whether there are any debris blocking the steering structure, or the steering components or steering gear are damaged.

Troubleshooting: Check all parts and replace any damaged or worn parts

3. Can turn, but cannot move forward or backward

1) The battery is low, replace it with a charged battery

2) The transmission parts are damaged or blocked or loosened by debris. Clean or replace the parts.

3) The ESC function is abnormal. Replace the ESC.

4. The model car makes a lot of noise when driving

Failure analysis: Check whether there are debris blocking the transmission parts, or the transmission parts are damaged or falling off, check the meshing degree of the motor gear and the large gear, check and analyze whether the differential and the large gear have teeth sweeping, chipping, etc.

If this happens, if the fault is not eliminated and dealt with in time, continued use will cause damage to the motor.

Notice:

1. The packaging color box is subject to the actual item received, because sometimes the factory will replace the packaging box with different ones.

2. Because the freight for overseas parcels is calculated based on volume, we will pack it according to the actual situation.

Sometimes we will not ship the goods in the original packaging box. We will re-modify the packaging box to reduce the size and prevent pressure.

If you mind, please don't buy.

Where can I buy scy 16102 pro accessories?

We sell all the original accessories about scy 16102, including upgrade accessories,

please click here to view: scy 16102 parts

if you can't find the product you want in our store, please contact us by mail, we will reply you as soon as possible!
