SCY16102/SCY 16102 PRO Upgrade Parts Metal Kit+Metal Oil Shock

Product introduction:

It is the original body shell of SCY 16102 PRO 1/16 RC Car.

The kit contains all the parts of the whole car that are easy to break and break, and after replacing it, the whole frame structure will be more hard and wear-resistant.

There are screws in the kit, if there are no screws in each part, then you only need to use the original screws.

Product size:

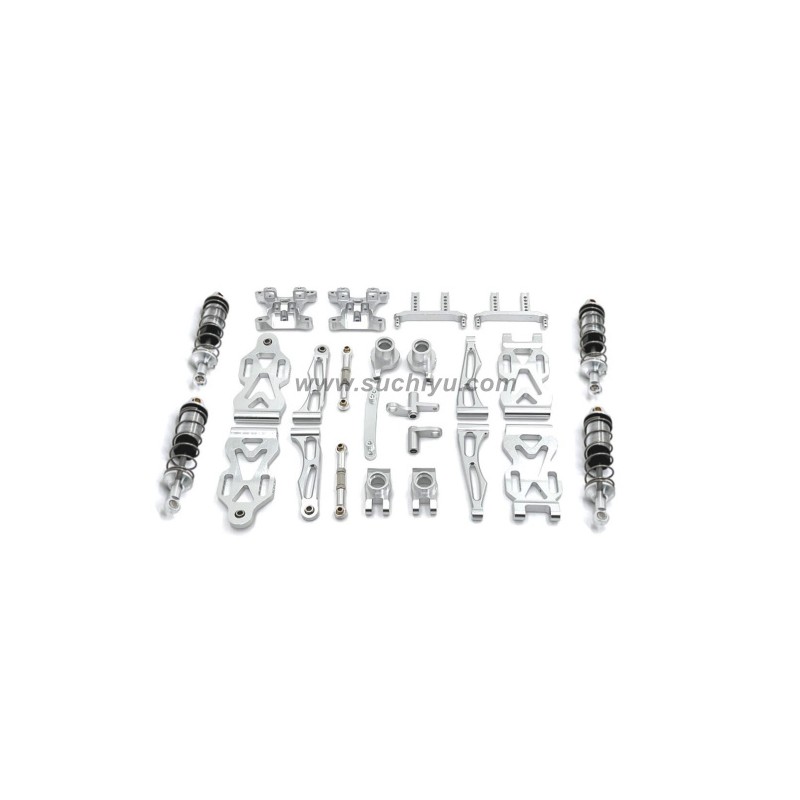

Includes accessories and dimensions:

Front and rear shock absorber bracket size: 42.76mm*29.6mm*19.75mm

Front and rear shell pillar size: 50.10mm*31.78mm*6.3mm

Front hem arm size: 68.52mm*32.27mm*11mm

Front swing arm size: 61.88mm*19.71mm*11.38mm

Front steering cup size: 27.05mm*20.24mm*19.70mm

Front steering rod size: 51mm-61mm

Steering component size: 53.5mm*34mm*17.2mm

Rear hem arm size: 65.83mm*32.26mm*10.84mm

Rear upper swing arm size: 65.87mm*19.2mm*7.3mm

Rear cup size: 30.53mm*15.75mm*14.81mm

Shock absorber size: Total length: 74mm stroke: 13mm

Attention:

1. It is recommended to install one part at a time. For example, remove one part first, and then remove another part after installation to avoid confusion.

2. The front bottom arm and back bottom arm are curved like the original swing arm. Observe the original car swing arm before installation, and the arc is facing up.

3. All the parts with the ball head, because the ball head is pressed up by the machine, after receiving, if it is found that the ball head is not easy to slide, you can first use a tool, such as using a small screwdriver to penetrate, gently shake up and down left and right to run in, but the strength can not be too large, so as to avoid the ball head falling off.

4. Front steering cup and rear cup, also need to install bearings, some customers do not install bearings, said not applicable, in fact, is the need to install bearings, bearings and original version of the same bearing,

If you need bearings, click here: 6046 ball bearing

5. Shock absorber, can adjust the softness and hardness, can be refueled by itself, but not refueling will not affect its use effect.

6. Before installation, be sure to adjust the length of the connecting rod to the same length as the original plastic connecting rod.

as picture

7. All products are shot in kind, but due to different batches and different display colors will be different, all items shall be subject to the receipt of physical objects.

The kit is custom-made for this series of cars and has been installed and tested.

If you have any questions about the product, or have any problems during installation, please contact us through our email, please do not leave a message on our website, because sometimes the system does not prompt, we will miss it.

In addition, if you also want to buy a set of screws for this upgrade metal, you can click here: Change metal special screws
